Product categories
Brands
Part No.

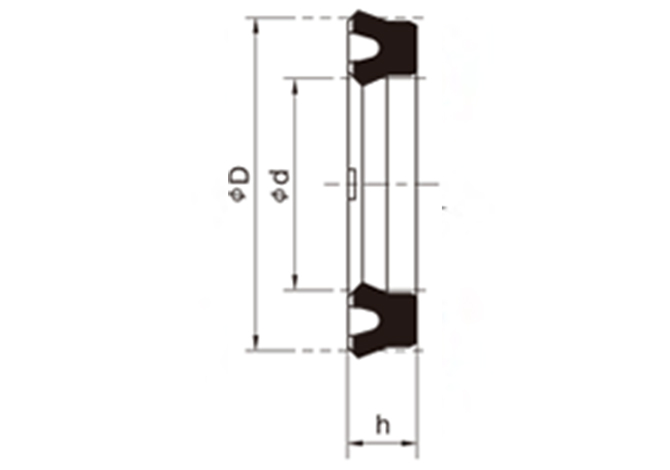

Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

IUH

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
CU0901N6 75 85 6
CU0619N3 50 60 6
CU0619N5 50 60 6
CU2548N0 16 24 5
CU1164N0 110 130 10
CU1125N1 105 120 9
CU2061N0 130 150 13
CU0149E0 16 22.4 3.2
CU3488N0 22 30 5
CU0567N6 45 55 6
CU0857N2 70 85 9
CU1483N3 180 200 12
CU1082N3 100 115 9
CU2692N1 14 22 5
CU0901N4 75 85 6
CU0879N0 71 80 6
CU0809N2 65 75 6
CU0939N3 80 90 6
CU1280N1 130 145 9
CU1157N5 110 125 9
CU0857N3 70 85 9
CU1252N5 125 140 9
CU1222E0 120 140 10
CU1220N2 120 135 9
CU0694N3 55 65 6
CU2965E0 60 73 10
CU1195N1 115 130 9
CU0424N5 35 45 6
CU0212N3 20 28 5
CU2445E0 50 63 10
CU0694N5 55 65 6
CU1406N1 160 175 9
CU2771N0 130 150 16
CU2984E0 95 110X10.5
CU2750E0 80 93 10
CU2614E0 120 135 9.5
CU3027E0 85 100 10
CU2571E0 55 68 10
CU0746N6 60 70 6
CU3090N2 75 90 9
CU1051N2 95 110 9
CU2961E0 75 88 10
CU2427E0 18.62 25.15 4.2
CU0568E1 45 55 7
CU1323N2 140 155 9
CU2791E0 70 83 10
CU1343N0 145 160 9
CU0320N0 28 35.5 5
CU3494N1 170 190 12
CU1359N4 150 165 9
CU3040N0 36 46 6
CU0451N2 35.5 45 6
CU0984N1 85 100 9
CU0828N0 67 77 6
CU0746N3 60 70 6
CU0572N1 45 56 7
CU1195N0 115 130 9
CU1323N3 140 155 9
CU0497N6 40 50 6
CU1178N0 112 125 8.5
CU0276N3 25 33 5
CU0357N5 30 40 6
CU0722N2 56 66 6
CU1575E0 210 230 12
CU1157N3 110 125 9
CU3494N0 170 190 12
CU0567N4 45 55 6
CU0212N5 20 28 5
CU0357N3 30 40 6
CU2065E0 140 160 10
CU2751E0 100 115 10
CU0809N4 65 75 6
CU1024N3 90 105 9
CU2264N0 135 150 9
CU0939N4 80 90 6
CU0180N2 18 26 5
CU1024N5 90 105 9
CU1082N5 100 115 9
CU1051N5 95 110 9
CU2615E0 185 205 12
CU2967E0 65 78 10
CU2264N2 135 150 9
CU1125N2 105 120 9
CU1483N2 180 200 12
CU0276N5 25 33 5
CU0786N2 63 73 6
CU0497N4 40 50 6
CU0424N3 35 45 6
CU3615N0 65 80 9
CU1089-N1 100 120 12
CU1025E0 90 105 10
CU1220N3 120 135 9
CU1252N3 125 140 9
CU1359N2 150 165 9
CU1280N0 130 145 9
