Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

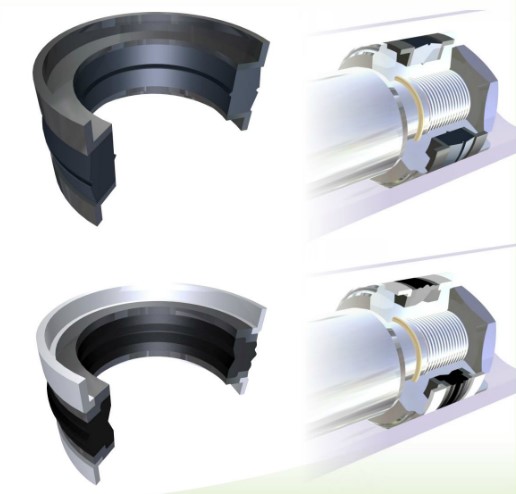

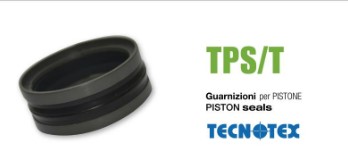

TPS

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
TPS 9523 230 250 31.5
TPS 9522 200 220 31.5
TPS 9521 180 200 31.5
TPS 9520 163 180 26.5
TPS 9519 143 160 26.5
TPS 9518 133 150 26.5
TPS 9517 123 140 26.5
TPS 9516/2 118 135 26.5
TPS 9516/1 113 130 26.5
TPS 9516 108 125 26.5
TPS 9515 106 120 22.5
TPS 9514 96 110 22.5
TPS 9513 86 100 22.5
TPS 9512 76 90 22.5
TPS 9511/1 71 85 22.5
TPS 9511 66 80 22.5
TPS 9510/1 63 75 20.5
TPS 9510 58 70 20.5
TPS 9509/1 53 65 20.5
TPS 9509 51 63 20.5
TPS 9508 48 60 20.5
TPS 9507/1 43 55 20.5
TPS 9507 38 50 20.5
TPS 9506 37 45 15.5
TPS 9505/1 29 40 15.5
TPS 9505 32 40 15.5
TPS 9504/1 4 35.002 15.5
TPS 9504 27 35 15.5
TPS 9503/1 21 32 15.5
TPS 9503 24 32 15.5
TPS 9502/1 19 30 13.5
TPS 9502 22 30 13.5
TPS 9501/1 14 25 13.5
TPS 9501 17 25 13.5
