Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

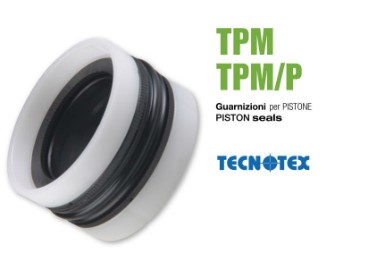

TPM

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
TPM/E 9089 320 290 36
TPM/E 9088 320 290 35.4
TPM/E 9087 280 250 35.4
TPM/E 9086 260 235 35.4
TPM/E 9085/1 254 224 35.4
TPM/E 9085 250 220 36
TPM/E 9084 250 220 35.4
TPM/E 9083 250 225 25.4
TPM/E 9082 240 215 25.4
TPM/E 9081 230 205 25.4
TPM/E 9080 225 200 25.4
TPM/E 9079 220 195 25.4
TPM/E 9078 220 190 35.4
TPM/E 9077 210 185 25.4
TPM/E 9076 200 175 25.4
TPM/E 9075 200 170 36
TPM/E 9074 200 170 35.4
TPM/E 9073 195 170 25.4
TPM/E 9072 190 165 25.4
TPM/E 9071 185 160 25.4
TPM/E 9070 180 150 35.4
TPM/E 9069 180 155 25.4
TPM/E 9068 175 150 25.4
TPM/E 9067 170 145 25.4
TPM/E 9066/1 170 140 25.4
TPM/E 9066 165 140 25.4
TPM/E 9065 160 130 25.4
TPM/E 9064 160 130 25.4
TPM/E 9063 160 140 25
TPM/E 9062 160 130 32
TPM/E 9061 160 135 25.4
TPM/E 9060 155 130 25.4
TPM/E 9059 150 130 25.4
TPM/E 9058/1 150 125 25.4
TPM/E 9058 150 125 25.4
TPM/E 9057/2 148 123 25.4
TPM/E 9057/1 147 119 25.4
TPM/E 9057 145 120 25.4
TPM/E 9056 140 120 25
TPM/E 9055 140 115 25.4
TPM/E 9054 140 115 25.4
TPM/E 9053 135 110 25.4
TPM/E 9052/1 130 110 25.3
TPM/E 9052 130 105 25.3
TPM/E 9051 125 105 25
TPM/E 9050 130 105 25.4
TPM/E 9049 125 105 25.4
TPM/E 9048 125 100 32
TPM/E 9047 125 100 25.4
TPM/E 9046/1 122 95 22.4
TPM/E 9046 120 95 22.4
TPM/E 9045 115 90 22.4
TPM/E 9044 110 95 20
TPM/E 9043 110 90 25.3
TPM/E 9042 110 85 25.4
TPM/E 9041 110 85 22.4
TPM/E 9040/2 106 80 22.4
TPM/E 9040/1 105 92.5 14
TPM/E 9040 105 80 22.4
TPM/E 9039 100 86 20
TPM/E 9038 100 85 20
TPM/E 9037 100 80 25
TPM/E 9036 100 75 22.4
TPM/E 9035 95 75 22.4
TPM/E9034/1 92 82 12.5
TPM/E 9034 90 75 20
TPM/E 9033/1 90 70 21
TPM/E 9033 90 70 22.4
TPM/E 9032/1 86 65 22.4
TPM/E 9032 85 75 20
TPM/E 9031 85 65 22.4
TPM/E 9030 80 65 20
TPM/E 9029 80 60 25
TPM/E 9028 80 60 22.4
TPM/E 9027 75 55 22.4
TPM/E 9026 70 55 20
TPM/E 9025 70 50 22.4
TPM/E 9024 65 50 18.4
TPM/E 9023 63 53 12.5
TPM/E 9022 63 48 20
TPM/E 9021/1 63 47 19.4
TPM/E 9021 63 47 18.4
TPM/E 9020/1 60 44 19.4
TPM/E 9020 60 44 18.4
TPM/E 9019 55 45 12.5
TPM/E 9018 55 39 18.4
TPM/E 9017 50 40 12.5
TPM/E 9016 50 35 20
TPM/E 9015 50 34 18.4
TPM/E 9014 45 35 16.4
TPM/E 9013 45 29 18.4
TPM/E 9012 40 24 18.4
TPM/E 9011 40 32 10
TPM/E 9010 40 30 12.5
TPM/E 9009 40 30 12.5
TPM/E 9008 40 30 16.4
TPM/E 9007 35 25 16.4
TPM/E 9006 32 24 10
TPM/E 9005 32 22 16.4
TPM/E 9004 32 22 12.5
TPM/E 9003 30 17 15.4
TPM/E 9002 25 17 10
TPM/E 9001 25 15 16.4
TPM/E 9000/1 25 15 12.4
TPM/E 9000 25 15 12.5
TPM/P 9615 177.8 152.4 32.15
TPM/P 9614 152.4 127 32.15
TPM/P 9613 127 101.6 32.15
TPM/P 9612/1 114.3 88.9 31.75
TPM/P 9612 101.6 82.55 23.79
TPM/P 9611 88.9 69.85 23.79
TPM/P 9610 76.2 57.15 23.79
TPM/P 9609 66.67 50.8 19.05
TPM/P 9608 63.5 53.97 11.1
TPM/P 9607 63.5 50.8 14.9
TPM/P 9606 63.5 47.62 19.05
TPM/P 9605 60.33 44.45 19.05
TPM/P 9604 53.97 38.1 19.05
TPM/P 9603 50.8 41.27 11.1
TPM/P 9602 50.8 34.92 19.05
TPM/P 9601 44.45 28.57 19.05
TPM/P 9600 38.1 28.57 11.1
TPM 9089 320 290 36
TPM 9088 320 290 35.4
TPM 9087 280 250 35.4
TPM 9086/2 270 245 35.4
TPM 9086/1 260 235 25.4
TPM 9086 260 235 35.1
TPM 9085/1 254 224 35.4
TPM 9085 250 220 36
TPM 9084 250 220 35.4
TPM 9083 250 225 25.4
TPM 9082 240 215 25.4
TPM 9081 230 205 25.4
TPM 9080 225 200 25.4
TPM 9079 220 195 25.4
TPM 9078 220 190 35.4
TPM 9077 210 185 25.4
TPM 9076 200 175 25.4
TPM 9075 200 170 36
TPM 9074 200 170 35.4
TPM 9073 195 170 25.4
TPM 9072 190 165 25.4
TPM 9071 185 160 25.4
TPM 9070/1 180 150 36
TPM 9070 180 150 35.4
TPM 9069 180 155 25.4
TPM 9068 175 150 25.4
TPM 9067 170 145 25.4
TPM 9066/1 170 140 25.4
TPM 9066 165 140 25.4
TPM 9065 160 130 25.4
TPM 9064 160 130 25.4
TPM 9063 160 140 25
TPM 9062 160 130 32
TPM 9061/2 160 135 32
TPM 9061/1 160 135 25.4
TPM 9061 160 135 25.4
TPM 9060/1 155 130 25.4
TPM 9060 155 130 25.4
TPM 9059 150 130 25.4
TPM 9058/1 150 125 25.4
TPM 9058 150 125 25.4
TPM 9057/2 148 123 25.4
TPM 9057/1 147 122 25.4
TPM 9057/3 145 120 25.4
TPM 9057 145 120 25.4
TPM 9056 140 120 25
TPM 9055 140 115 25.4
TPM 9054 140 115 25.4
TPM 9053/1 135 110 25.4
TPM 9053 135 110 25.4
TPM 9052/1 130 110 25.4
TPM 9052 130 105 25.3
TPM 9051 125 105 25
TPM 9050 130 105 25.4
TPM 9049 125 105 25.4
TPM 9048 125 100 32
TPM 9047 125 100 25.4
TPM 9046/1 122 95 22.4
TPM 9046 120 95 22.4
TPM 9045 115 90 22.4
TPM 9044 110 95 20
TPM 9043 110 90 25.3
TPM 9042 110 85 25.4
TPM 9041 110 85 22.4
TPM 9040/1 105.8 80 22.4
TPM 9040 105 80 22.4
TPM 9039 100 86 20
TPM 9038 100 85 20
TPM 9037 100 80 25
TPM 9036 100 75 22.4
TPM 9035 95 75 22.4
TPM 9034 90 75 20
TPM 9033/1 90 70 21
TPM 9033 90 70 22.4
TPM 9032/1 86 65 22.4
TPM 9032 85 75 20
TPM 9031 85 65 22.4
TPM 9030 80 65 20
TPM 9029 80 60 25
TPM 9028 80 60 22.4
TPM 9027 75 55 22.4
TPM 9026 70 55 20
TPM 9025 70 50 22.4
TPM 9024 65 50 18.4
TPM 9023 63 53 12.5
TPM 9022 63 48 20
TPM 9021/1 63 47 19.4
TPM 9021 63 47 18.4
TPM 9020/1 60 44 19.4
TPM 9020 60 44 18.4
TPM 9019 55 45 12.5
TPM 9018 55 39 18.4
TPM 9017/1 50 40 11.3
TPM 9017 50 40 12.5
TPM 9016 50 35 20
TPM 9015 50 34 18.4
TPM 9014 45 35 16.4
TPM 9013 45 29 18.4
TPM 9012 40 24 18.4
TPM 9011 40 32 10
TPM 9010 40 30 12.5
TPM 9009 40 30 12.5
TPM 9008 40 30 16.4
TPM 9007 35 25 16.4
TPM 9006 32 24 10
TPM 9005 32 22 16.4
TPM 9004 32 22 12.5
TPM 9003 30 17 15.4
TPM 9002 25 17 10
TPM 9001 25 15 16.4
TPM 9000/1 25 15 12.4
TPM 9000 25 15 12.5
