Part No.

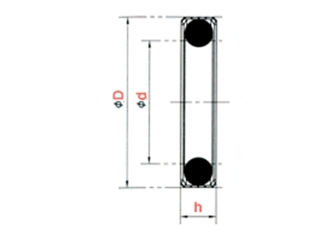

Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

SPGC

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
GS1036F0 36 42 4.4
GS1066F0 95 105 7
GS1095F0 215 230 10.5
GS1057F0 63 73 7
GS1086F0 175 190 10.5
GS1096F0 220 235 10.5
GS1030F0 31 37 4.4
GS1044F0 46 52 4.4
GS1105F0 265 280 10.5
GS1024F0 25.5 31.5 4.4
GS1052F0 55 65 7
GS1016F0 18 22 3
GS1012F0 12.5 16.5 3
GS1120F0 385 400 10.5
GS1045F0 48 54 4.4
GS1119F0 375 390 10.5
GS1015F0 16 20 3
GS1006F0 9 12 2.3
GS1098F0 230 245 10.5
GS1061F0 71 81 7
GS1043F0 45 51 4.4
GS1010F0 11.2 15.2 3
GS1035F0 35.5 41.5 4.4
GS1027F0 29 35 4.4
GS1034F0 35 41 4.4
GS1065F0 90 100 7
GS1108F0 280 295 10.5
GS1102F0 250 265 10.5
GS1101F0 245 260 10.5
GS1100F0 240 255 10.5
GS1040F0 41 47 4.4
GS1099F0 235 250 10.5
GS1111F0 295 310 10.5
GS1033F0 34 40 4.4
GS1002F0 5 8 2.3
GS1074F0 125 135 7
GS1067F0 100 110 7
GS1000F0 3 6 2.3
GS1039F0 40 46 4.4
GS1026F0 28 34 4.4
GS1081F0 150 160 7
GS1071F0 112 122 7
GS1114F0 320 335 10.5
GS1003F0 6 9 2.3
GS1046F0 49 55 4.4
GS1091F0 200 215 10.5
GS1049F0 50 60 7
GS1025F0 26 32 4.4
GS1021F0 22.4 28.4 4.4
GS1009F0 11 15 3
GS1060F0 70 80 7
GS1051F0 53 63 7
GS1017F0 20 24 3
GS1001F0 4 7 2.3
GS1118F0 360 375 10.5
GS1078F0 140 150 7
GS1089F0 190 205 10.5
GS1094F0 210 225 10.5
GS1115F0 335 350 10.5
GS1068F0 102 112 7
GS1117F0 355 370 10.5
GS1087F0 180 195 10.5
GS1084F0 165 180 10.5
GS1053F0 56 66 7
GS1064F0 85 95 7
GS1059F0 67 77 7
GS1116F0 340 355 10.5
GS1038F0 39 45 4.4
GS1080F0 150 165 10.5
GS1063F0 80 90 7
GS1070F0 110 120 7
GS1022F0 24 30 4.4
GS1005F0 8 11 2.3
GS1028F0 29.5 35.5 4.4
GS1047F0 50 56 4.4
GS1113F0 315 330 10.5
GS1106F0 270 285 10.5
GS1014F0 15 19 3
GS1048F0 48 58 7
GS1109F0 285 300 10.5
GS1020F0 22 28 4.4
GS1055F0 60 70 7
GS1079F0 145 155 7
GS1110F0 290 305 10.5
GS1085F0 170 185 10.5
GS1097F0 225 240 10.5
GS1007F0 10 13 2.3
GS1031F0 31.5 37.5 4.4
GS1042F0 44 50 4.4
GS1104F0 260 275 10.5
GS1069F0 105 115 7
GS1018F0 21 25 3
GS1011F0 12 16 3
GS1103F0 255 270 10.5
GS1019F0 22 26 3
GS1037F0 38 44 4.4
GS1004F0 7 10 2.3
GS1032F0 32 38 4.4
GS1062F0 75 85 7
GS1029F0 30 36 4.4
GS1058F0 65 75 7
GS1013F0 14 18 3
GS1056F0 62 72 7
GS1050F0 52 62 7
GS1076F0 132 142 7
GS1112F0 300 315 10.5
GS1082F0 155 170 10.5
GS1023F0 25 31 4.4
GS1083F0 160 175 10.5
GS1077F0 135 145 7
GS1041F0 42 48 4.4
GS1088F0 185 200 10.5
GS1073F0 120 130 7
GS1092F0 205 220 10.5
GS1054F0 58 68 7
GS1075F0 130 140 7
GS1008F0 10 14 3
GS1107F0 275 290 10.5
GS1072F0 115 125 7
GS1090F0 195 210 10.5
GS1093F0 209 224 10.5
