Product categories
Brands
Part No.
Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

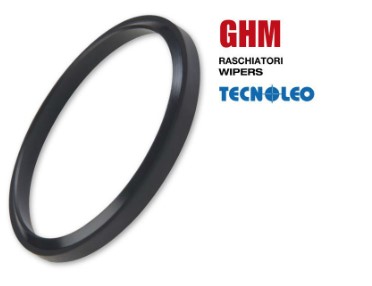

GHM

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
GHM 375 650 670 10.2
GHM 374 640 660 10.2
GHM 373 600 620 10.2
GHM 372/2 570 590 10.2
GHM 372/1 530 550 10.2
GHM 372 505 525 10.2
GHM 371/1 500 520 10.2
GHM 371/2 470 500 15.2
GHM 371 450 470 10.2
GHM 370/2 444.5 482.6 15.9
GHM 370/1 440 470 15.2
GHM 370/3 420 440 12.2
GHM 370 400 420 10.2
GHM 369/1 380 410 25
GHM 369 360 380 10.2
GHM 368/1 340 360 10.2
GHM 368 320 340 10.2
GHM 367 310 330 10.2
GHM 366 300 320 10.2
GHM 365/2 300 315 7.1
GHM 365/1 280 300 10.2
GHM 365 270 290 10.2
GHM 364 260 280 10.2
GHM 363 250 270 10.2
GHM 362/1 240 260 10.2
GHM 362 230 250 10.2
GHM 361/1 225 245 10.2
GHM 361/2 225 240 10.2
GHM 361 220 240 10.2
GHM 360/1 210 230 10.2
GHM 360 200 220.2 10.2
GHM 359/3 210 220 10
GHM 359/2 200 215 10
GHM 359/1 190 210 10.2
GHM 359 180 200.2 10.2
GHM 358/3 180 195.2 10.1
GHM 358/2 175 190 7
GHM 358/1 170 185.2 10.1
GHM 358/6 170 178.2 5.3
GHM 358/5 165 180.2 10.1
GHM 358/4 165 173.2 5.3
GHM 358 160 175.2 10.1
GHM 357/1 160 168.2 5.3
GHM 357 150 165.2 10.1
GHM 356 150 162.2 7.1
GHM 355/3 146 154.2 5.3
GHM 355/2 150 158.6 5.3
GHM 355/1 145 160.6 9
GHM 355 145 157.2 7.1
GHM 354/1 145 153.2 5.3
GHM 354 140 155.2 10.1
GHM 353 140 152.2 7.1
GHM 352 135 147.2 7.1
GHM 351 130 142.2 7.1
GHM 350 125 140.2 10.1
GHM 349 125 137.2 7.1
GHM 348/1 122 130.2 5.3
GHM 348 120 132.2 7.1
GHM 347/1 120 128.6 5.3
GHM 347 115 127.2 7.1
GHM 346 110 122.2 7.1
GHM 345 105 117.2 7.1
GHM 344 100 112.2 7.1
GHM 343/2 100 108.6 5.3
GHM 343/1 96.5 111 7.1
GHM 343 95 107.2 7.1
GHM 342 90 102.2 7.1
GHM 341/1 90 98.6 5.3
GHM 341 85 97.2 7.1
GHM 340/1 85 93.6 5.3
GHM 340 80 92.2 7.1
GHM 339 80 88.6 5.3
GHM 338/1 76.5 88.7 7.1
GHM 338 75 87.2 7.1
GHM 337 75 83.6 5.3
GHM 336 70 82.6 7.1
GHM 335 70 80.6 5.3
GHM 334 70 78.6 5.3
GHM 333 65 75.6 5.3
GHM 332 65 73.6 5.3
GHM 331 63 73.6 5.3
GHM 330 63 71.6 5.3
GHM 329/1 61 69 5.3
GHM 329 60 70.6 5.3
GHM 328 60 68.6 5.3
GHM 327 56 66.6 5.3
GHM 326/1 56 64.6 5.3
GHM 326 55 65.6 5.3
GHM 325 55 63.6 5.3
GHM 324 53 61.6 5.3
GHM 323 50 60.6 5.3
GHM 322 50 58.6 5.3
GHM 321 48 56.6 5.3
GHM 320 46 54.6 5.3
GHM 319 45 55.6 5.3
GHM 318 45 53.6 5.3
GHM 317 42 50.6 5.3
GHM 316 40 48.6 5.3
GHM 315 38 46.6 5.3
GHM 314 36 44.6 5.3
GHM 313 35 43.6 5.3
GHM 312/1 33 41.6 5.3
GHM 312 32 40.6 5.3
GHM 311 30 38.6 5.3
GHM 310 28 36.6 5.3
GHM 309/1 27 35.6 5.3
GHM 309 26 34.6 5.3
GHM 308 25 33.6 5.3
GHM 307/1 24 32.6 5.3
GHM 307 22 30.6 5.3
GHM 306 20 28.6 5.3
GHM 305 19 28.6 5.3
GHM 304 18 24.6 3.8
GHM 303 17 23.6 3.8
GHM 302/2 16 24.6 5.3
GHM 302/1 16 22.6 3.8
GHM 302 15 21.6 3.8
GHM 301 13 19.6 3.8
GHM 300 12 18.6 3.8
