Part No.

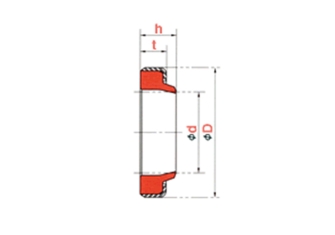

Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

DKI

Installation & Handling

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
FD4168A0 106 122 9 12
FD5396A0 250 275 12 17
FD5622A0 300 330 16 22
FD2729A0 47 59 7 10
FD3313A0 63 77 8 11
FD4733A0 165 185 10 14
FD4839A0 175 195 10 14
FD1870A0 32 44 7 10
FD3187A0 60 74 8 11
FD2831A0 50 62 7 10
FD3546A0 71 85 8 11
FD0995A0 20 32 6 9
FD4476A0 132 148 9 12
FD1301A0 25 37 6 9
FD2633A0 45 57 7 10
FD0412A0 12.5 23 5 7
FD4196A0 110 126 9 12
FD0142A0 8 18 5 7
FD2217A0 38 50 7 10
FD5277A0 230 255 12 17
FD5451E0 260 285 12 17
FD5584E0 290 320 16 22
FD4232A0 112 128 9 12
FD4941E0 185 210 12 17
FD5336A0 240 265 12 17
FD4663E0 155 175 10 14
FD3913A0 90 104 8 11
FD4046A0 100 114 8 11
FD4317A0 118 134 9 12
FD5200A0 220 245 12 17
FD0064A0 6.3 16 5 7
FD0513A0 14 24 5 7
FD0332A0 11.2 21 5 7
FD4326A0 120 136 9 12
FD0815A0 18 30 6 9
FD4578A0 145 165 10 14
FD4393A0 125 141 9 12
FD4142A0 105 121 9 12
FD0095A0 7.1 17 5 7
FD5151A0 212 237 12 17
FD3720A0 80 94 8 11
FD3381A0 65 79 8 11
FD2041A0 35 47 7 10
FD2149A0 35.5 47.5 7 10
FD3089A0 56 70 8 11
FD0586A0 15 25 5 7
FD2985A0 53 67 8 11
FD1503A0 27 39 6 9
FD1536A0 28 40 6 9
FD5480A0 265 290 12 17
FD1664A0 30 42 6 9
FD5237A0 224 249 12 17
FD3493A0 70 84 8 11
FD1203A0 22.4 34.4 34.4 9
FD0199A0 9 19 5 7
FD4438A0 130 146 9 12
FD5245F0 225 250 12 17
FD5326A0 236 261 12 17
FD3366A0 64 78 11 11
FD4492A0 135 155 10 14
FD5556A0 280 310 16 22
FD3957A0 92 106 8 11
FD4615A0 150 170 10 14
FD3512E0 70 90 10 13
FD4969A0 190 215 12 17
FD4785A0 170 190 10 14
FD5048A0 200 225 12 17
FD5379E0 245 270 12 17
FD4533A0 140 160 10 14
FD3976A0 92 109 8 11
FD4704A0 160 180 10 14
FD4272E0 115 131 9 12
FD3447A0 67 81 11 11
FD3033A0 55 69 11 11
FD2342A0 40 52 10 10
FD4187E0 108 125 9 12
FD1803A0 31.5 44 7 10
FD5129E0 210 235 12 17
FD3596A0 75 89 8 11
FD0677A0 16 26 5 7
FD0258A0 10 20 5 7
FD4890A0 180 205 12 17
FD3828A0 85 99 8 11
