Installation dimensions
  • Inside Diameter ID
    mm
  • Outside Diameter OD
    mm
  • Groove section H1
    mm
  • Groove Width H2
    mm

DKBI

Installation & Handling

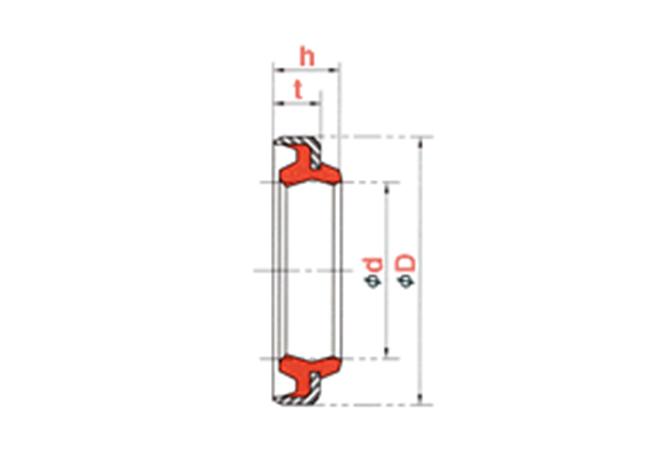

Installation dimensions

Material Properties

Seal Capabilities

Download Technical Details (PDF)
Part No. ID OD H1 H2 Quantity Pick
FD3033E1 55 69 8 11
FD4196E0 110 126 9 12
FD2041E1 35 47 7 10
FD0995F0 20 32 6 9
FD4272I0 115 131 9 12
FD3187E0 60 74 8 11
FD2633G0 45 57 7 10
FD3493E0 70 84 8 11
FD3596E0 75 89 8 11
FD3381E0 65 79 8 11
FD3976E0 95 109 8 11
FD6722E0 105 121 9 12
FD1301E0 25 37 6 9
FD2831E0 50 62 7 10
FD1870E0 32 44 7 10
FD3828G0 85 99 8 11
FD4438F0 130 146 9 12
FD2342F0 40 52 7 10
FD4046E1 100 114 8 11
FD3913E0 90 104 8 11
FD1664E0 30 42 6 9
FD1962E1 34 46 7 10
FD9940E0 38 50 7 10
FD3720E0 80 94 8 12
FD4326E0 120 135 9 12
FD4533E0 140 160 10 14
